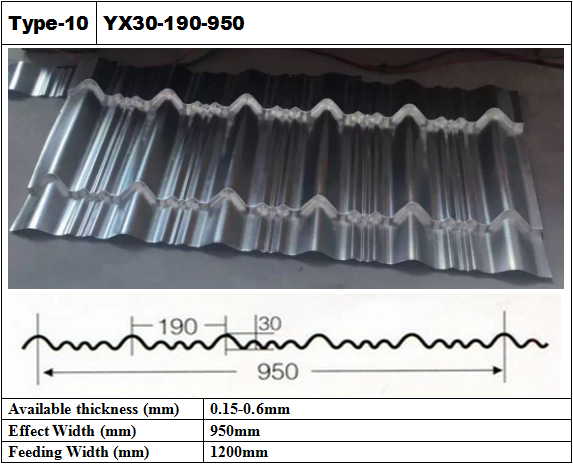

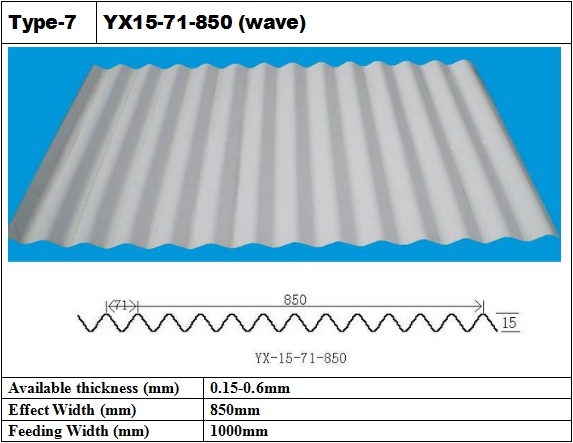

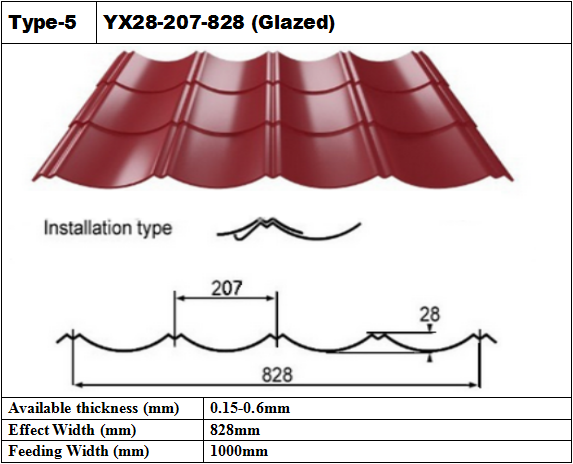

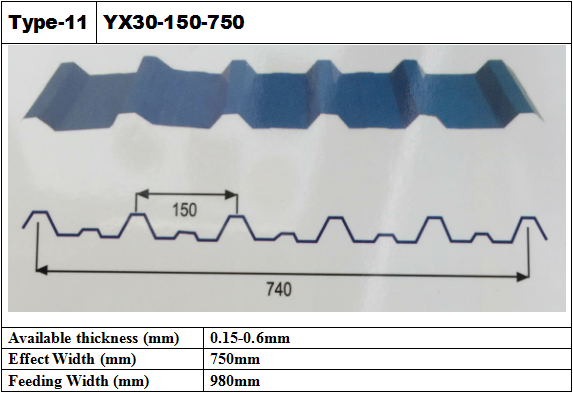

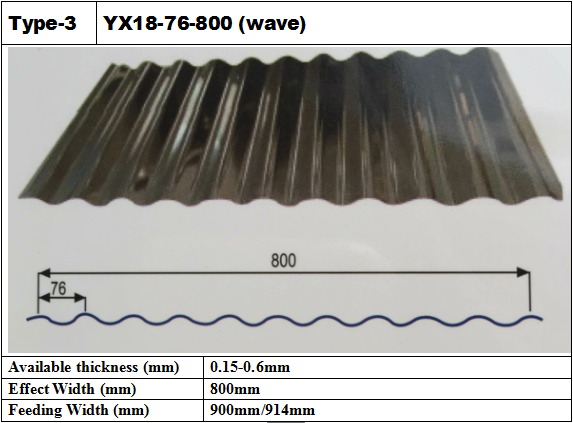

Corrugated Steel Sheet / Roof tile types |

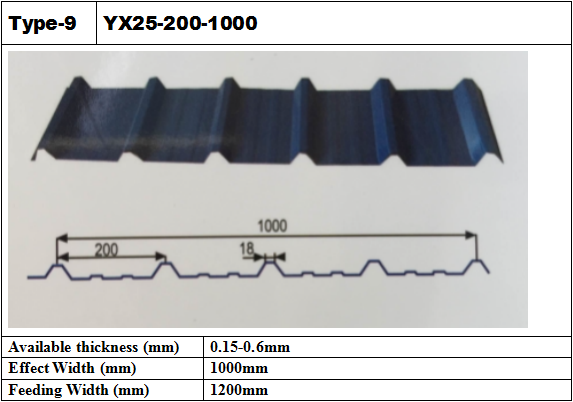

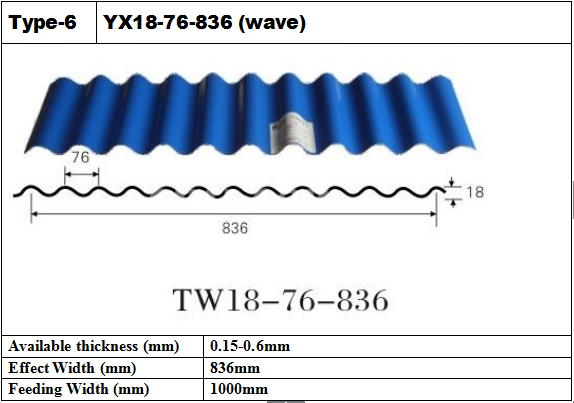

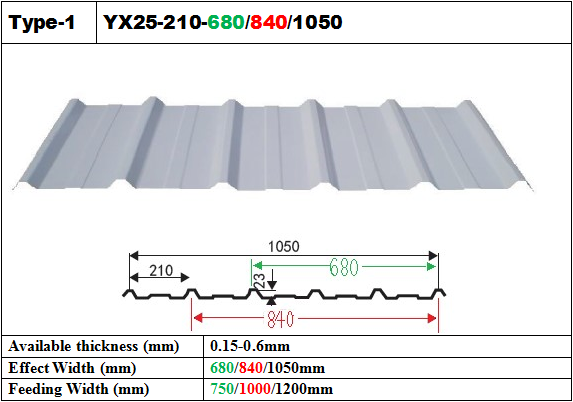

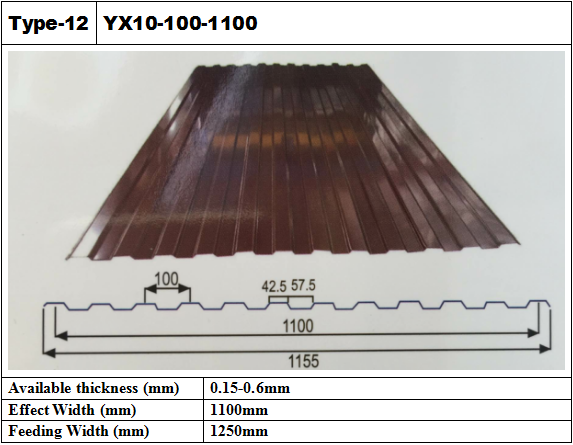

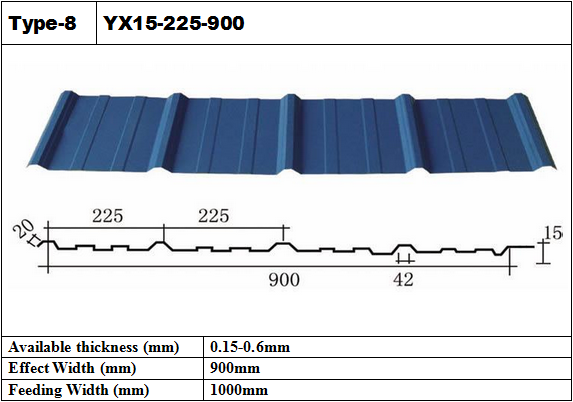

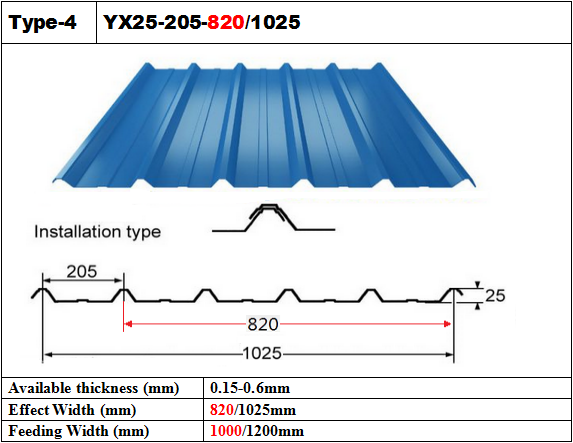

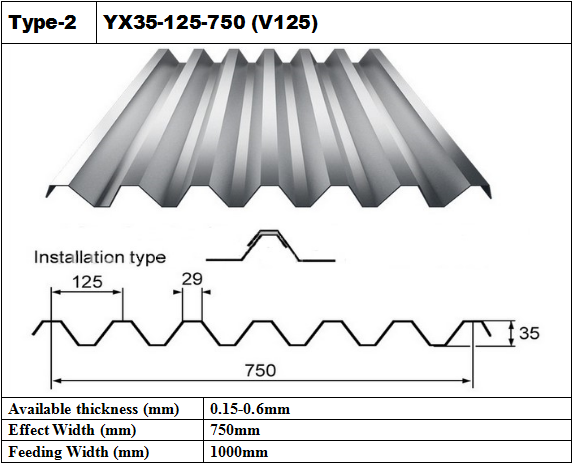

yx10-130-910 yx12-110-880 yx14-63.5-850 yx15-225-900 yx18-76-836/1064 yx20-215-860/1075 yx25-205-820/1025 yx25-210-840 yx35-125-750 yx51-240-720 yx54-410-820 yx75-200-600 yx76-344-688 yx76-380-760 |
|
Material |
PPGI, galvanized steel coils，pre-painted galvalume sheet，Aluminum sheet |
|
Steel grade |
DX51D, Q195, Q195L, SGCC |
|
Thickness |
0.13-0.8mm |
|
Effect Width |
400-1150mm |
|
Feeding width |
600mm - 1250mm |
|
Length |
1.8-5m，as client’s request |
|
Zinc coating |
30-180g/m2 |
|

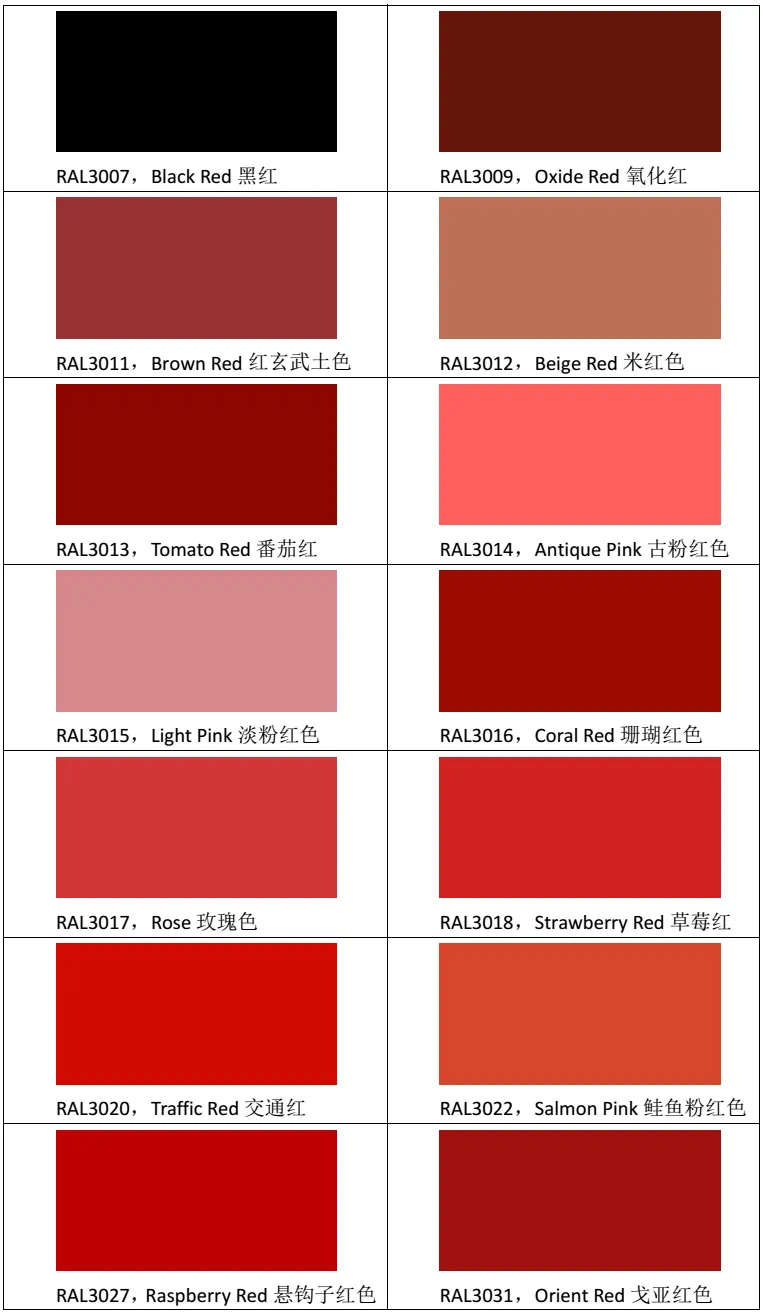

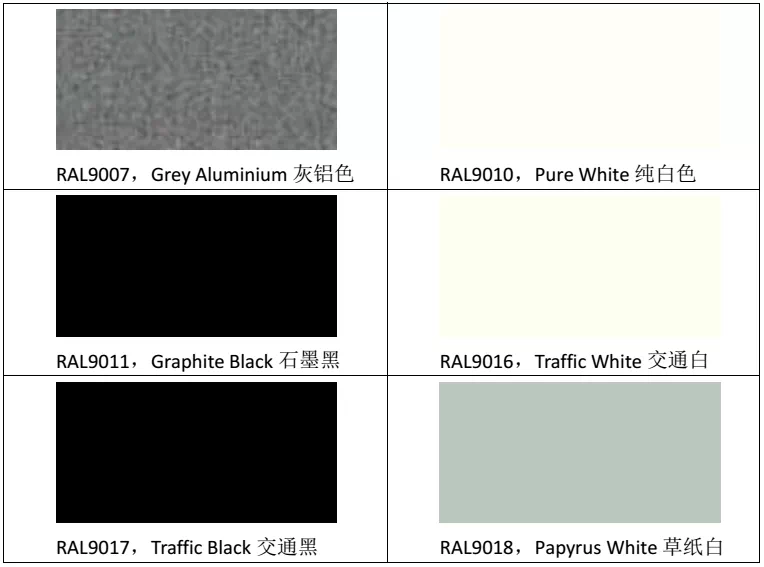

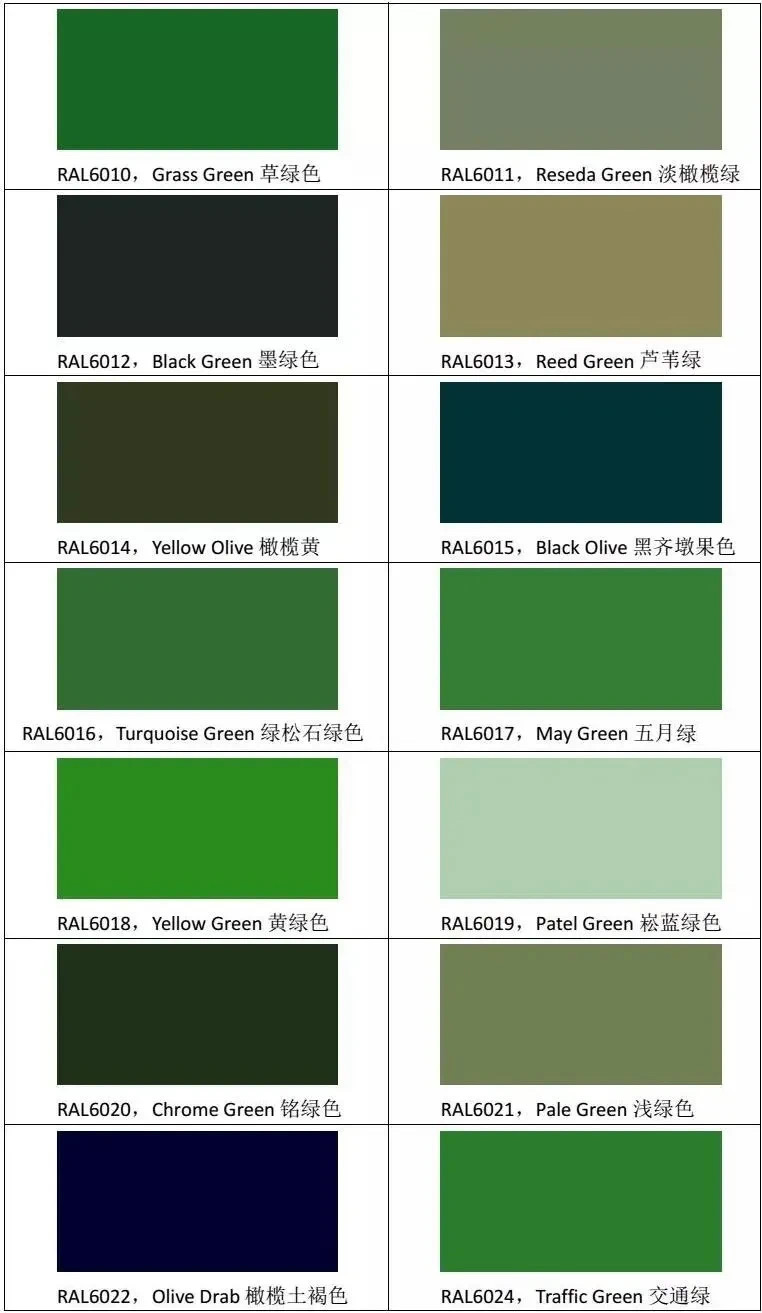

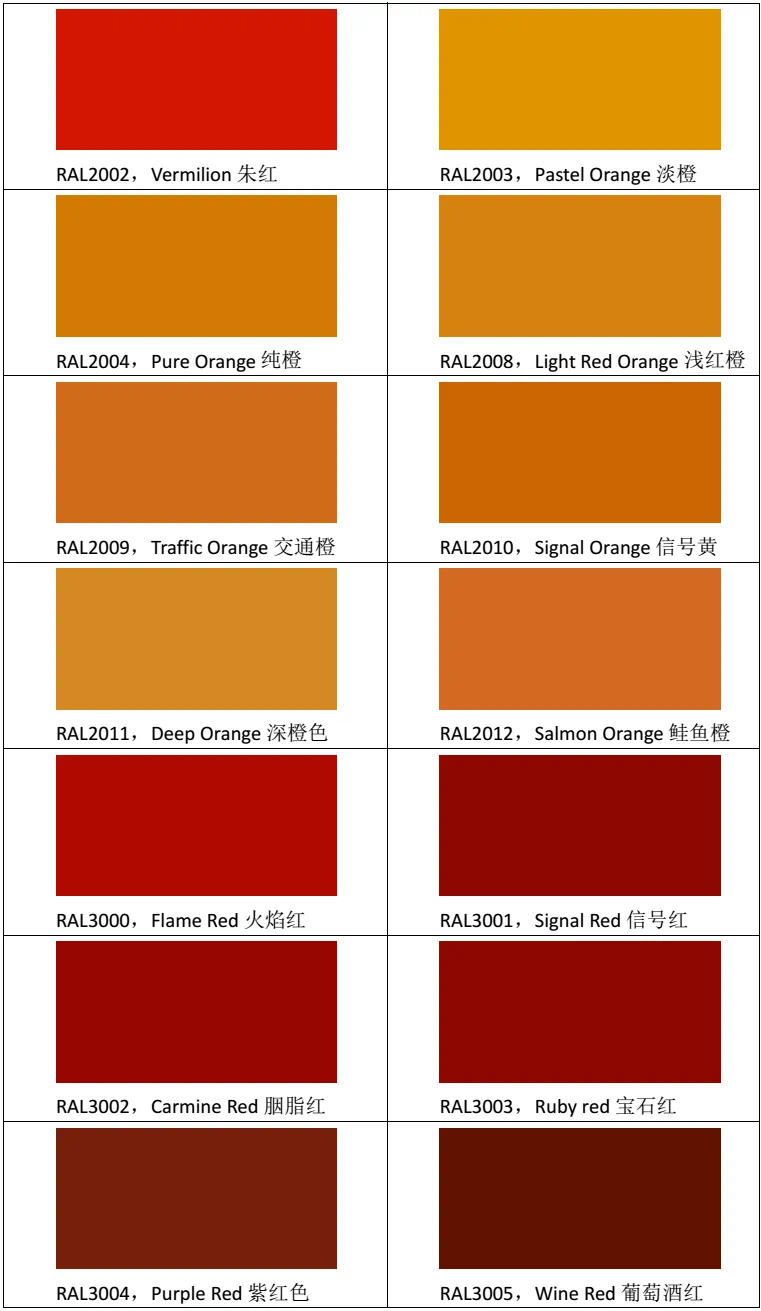

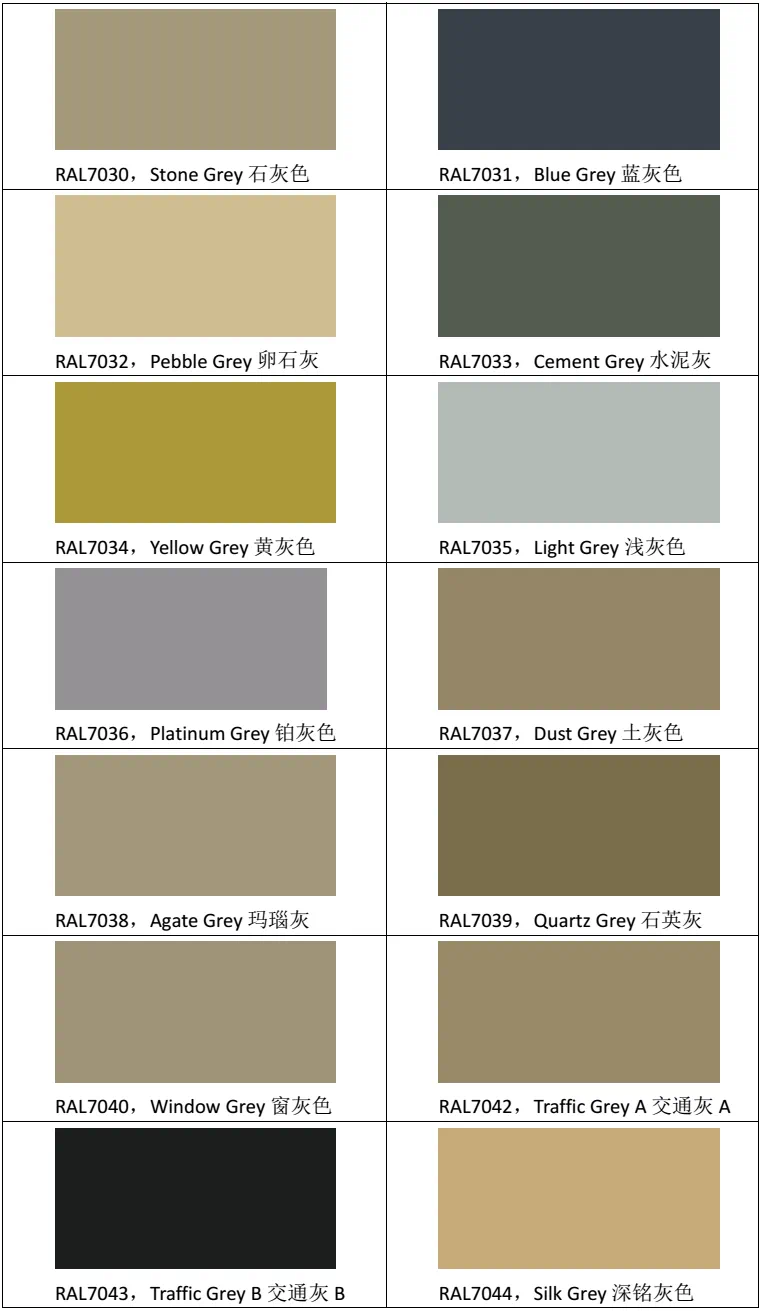

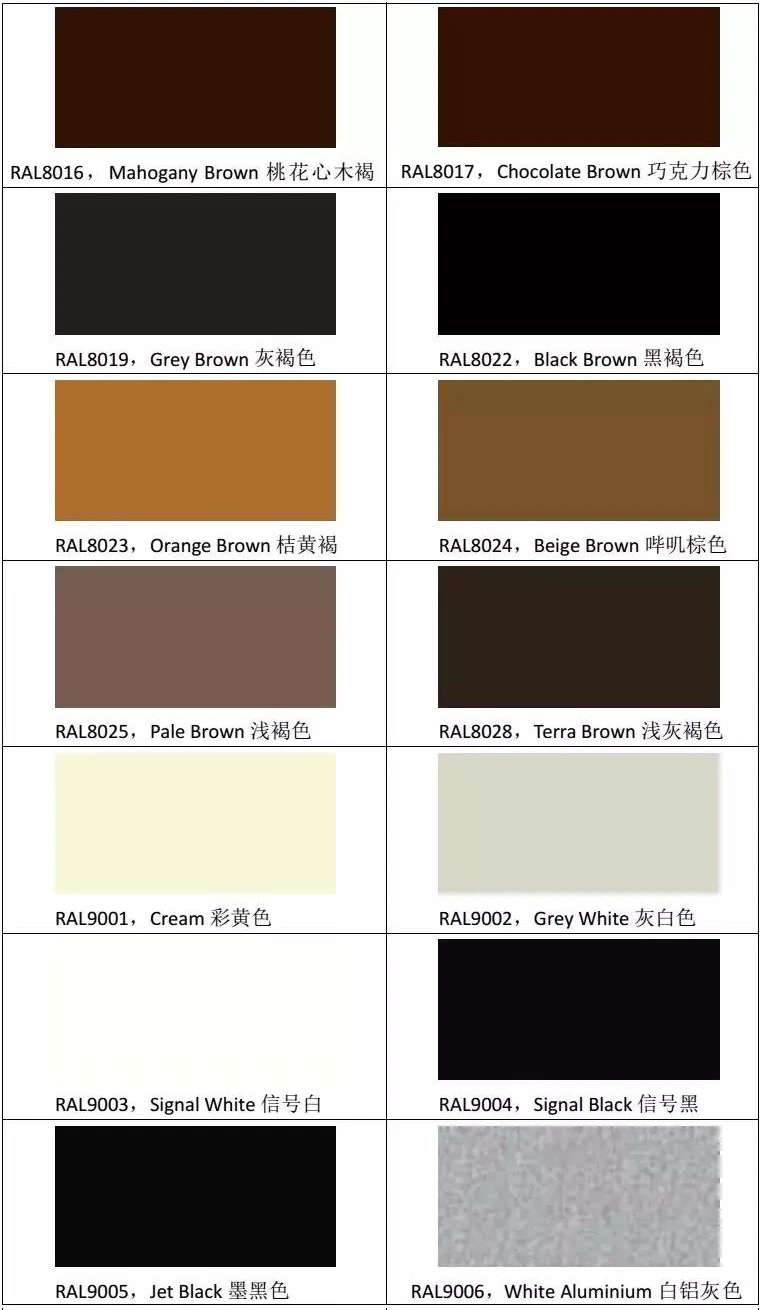

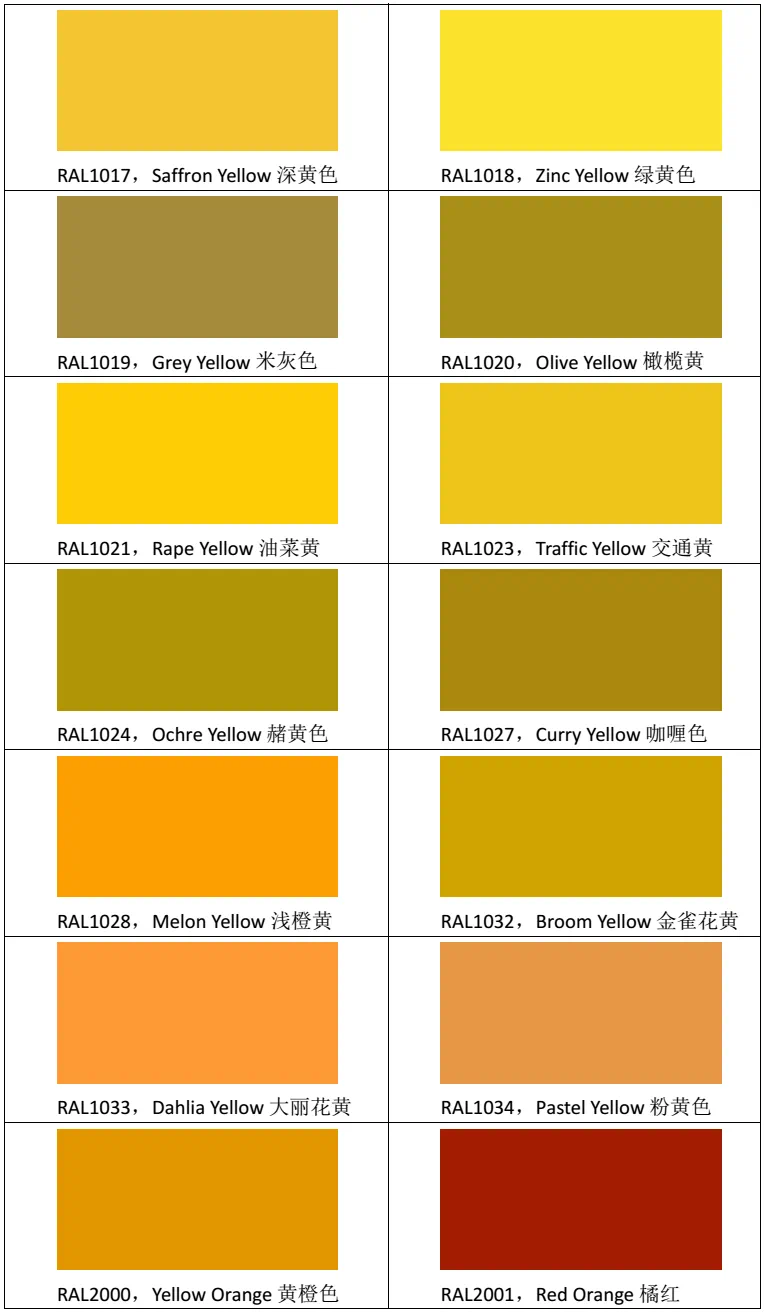

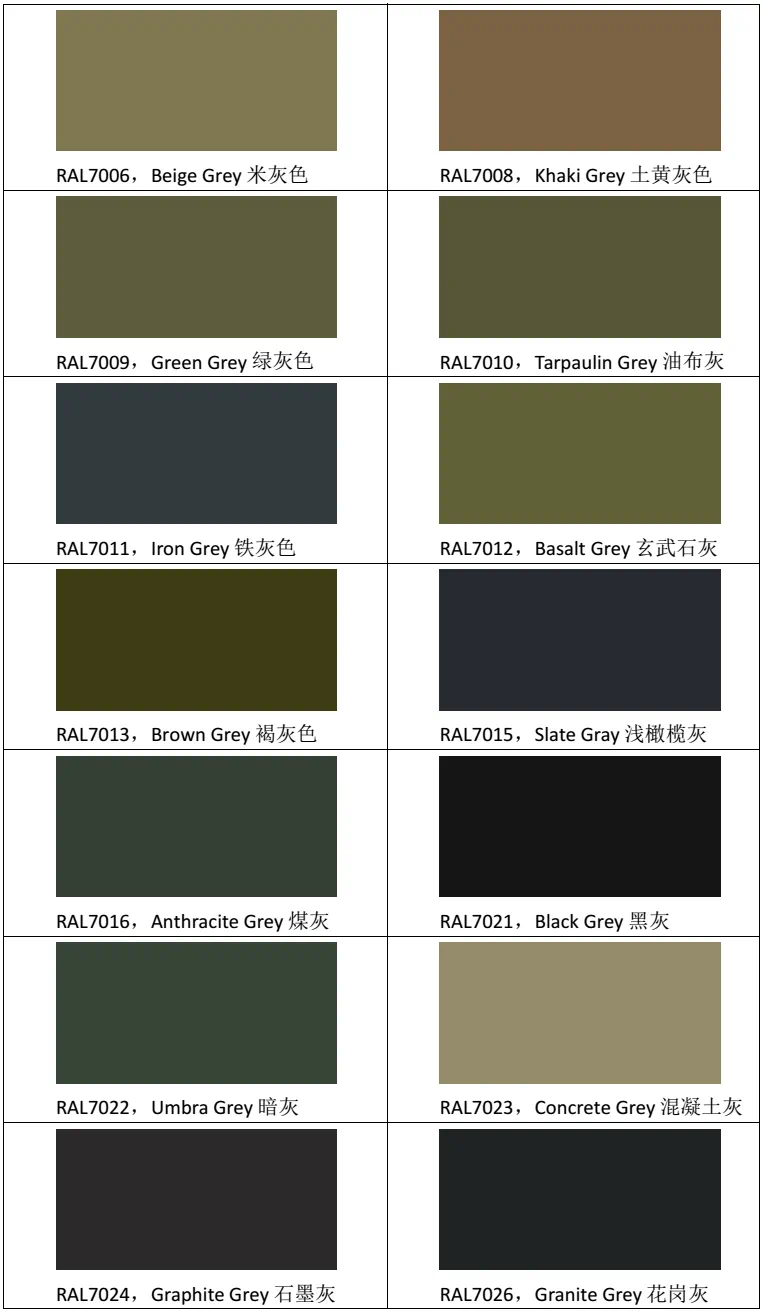

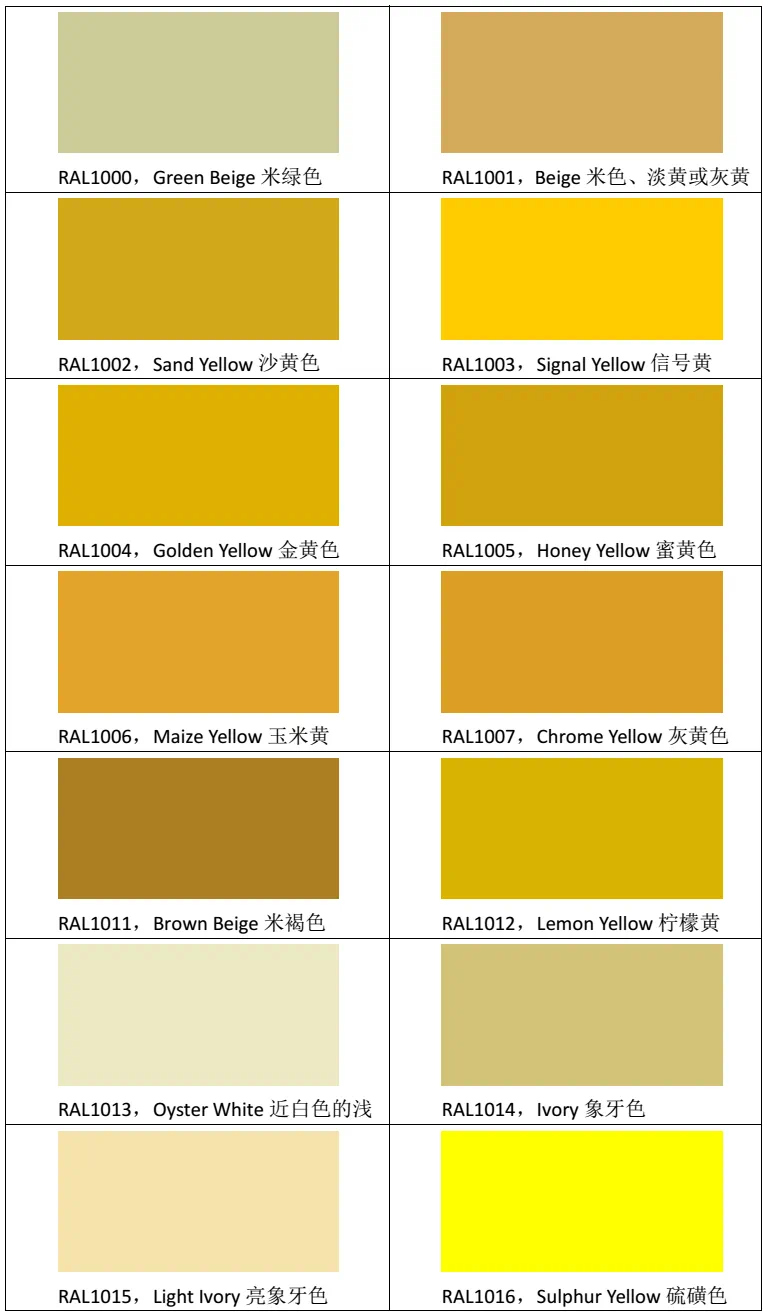

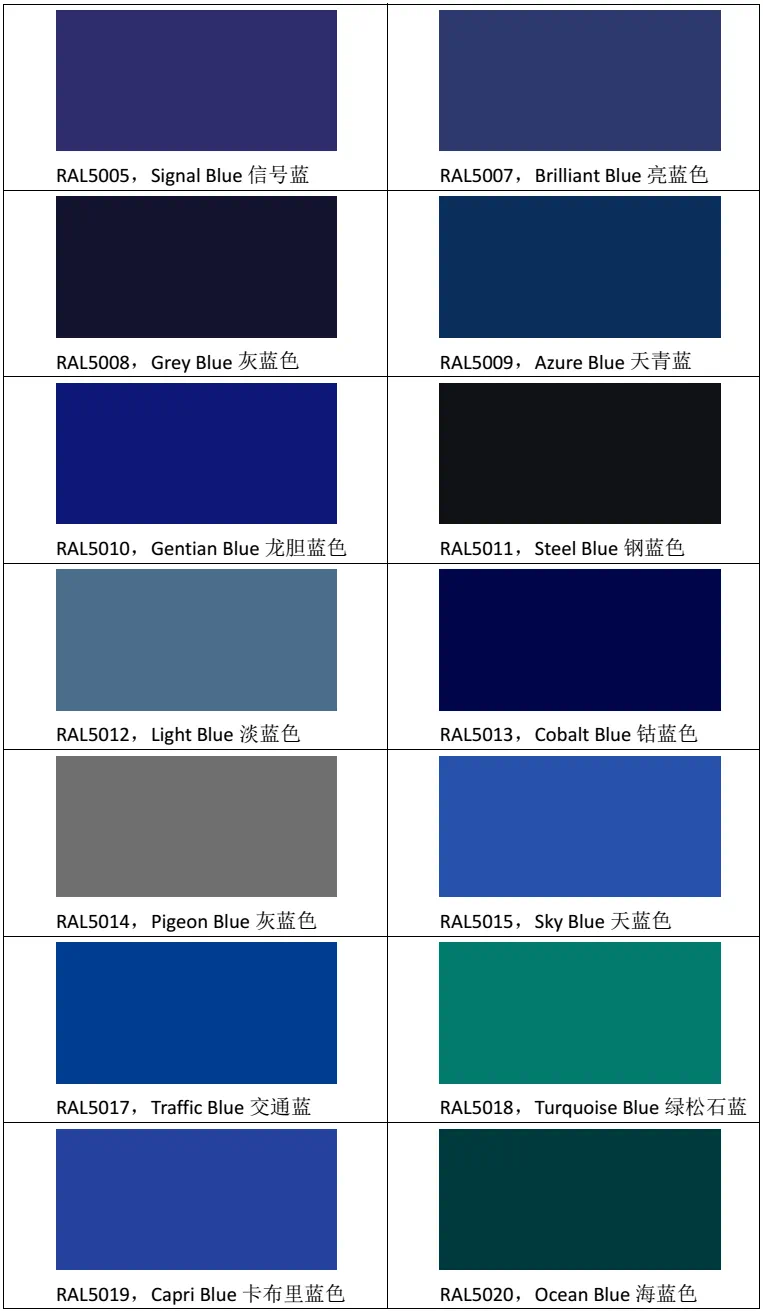

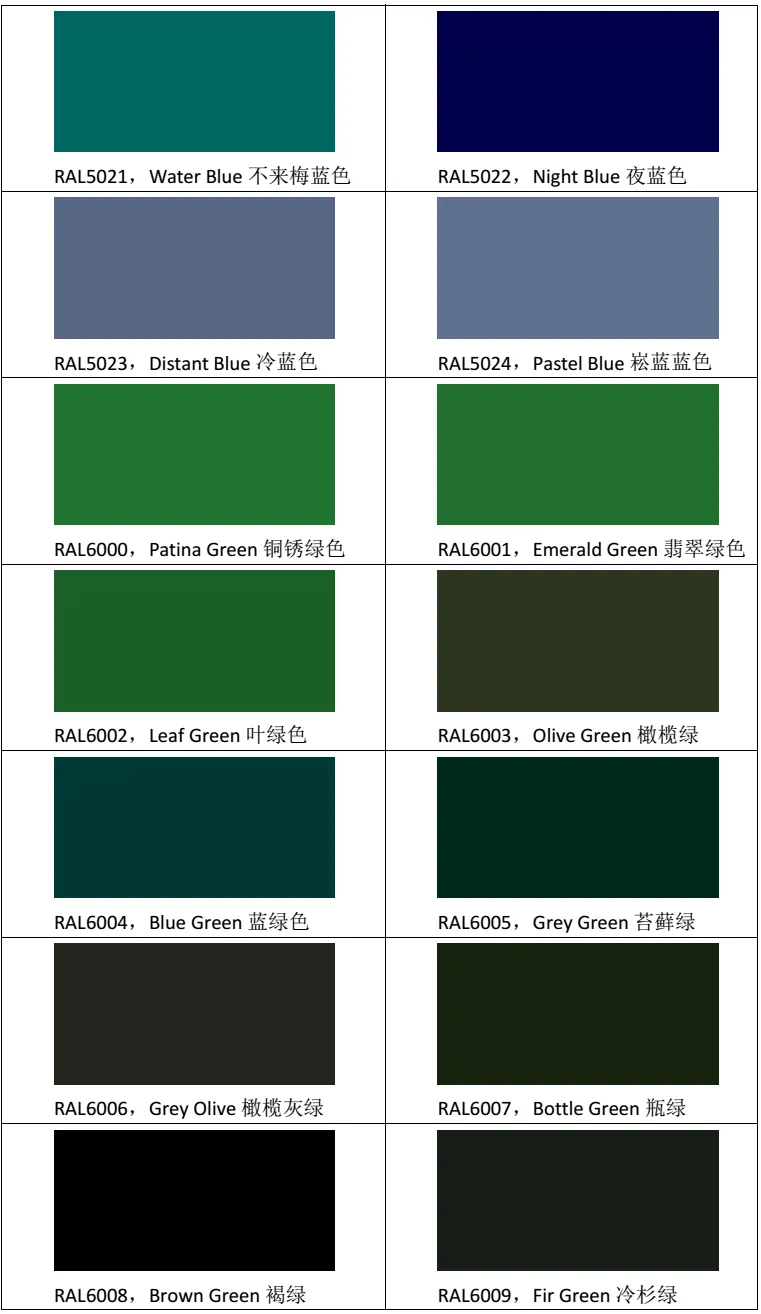

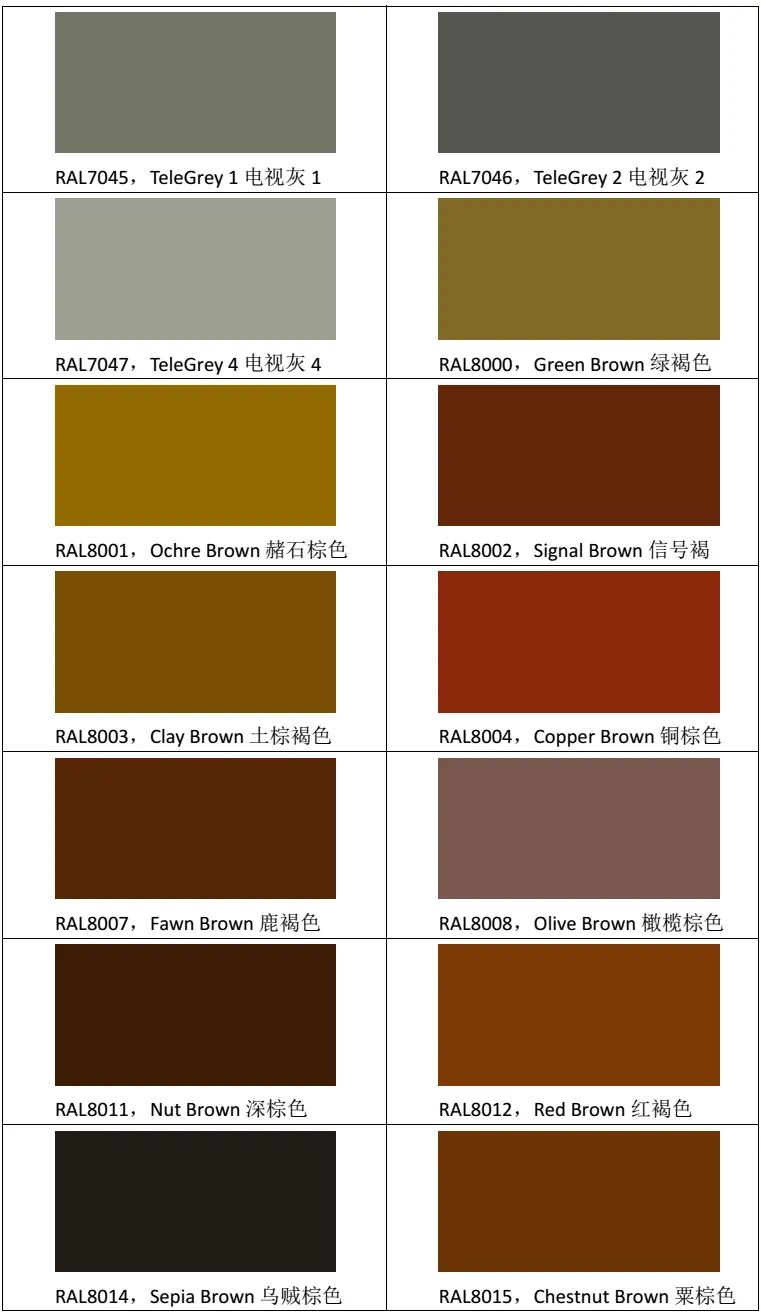

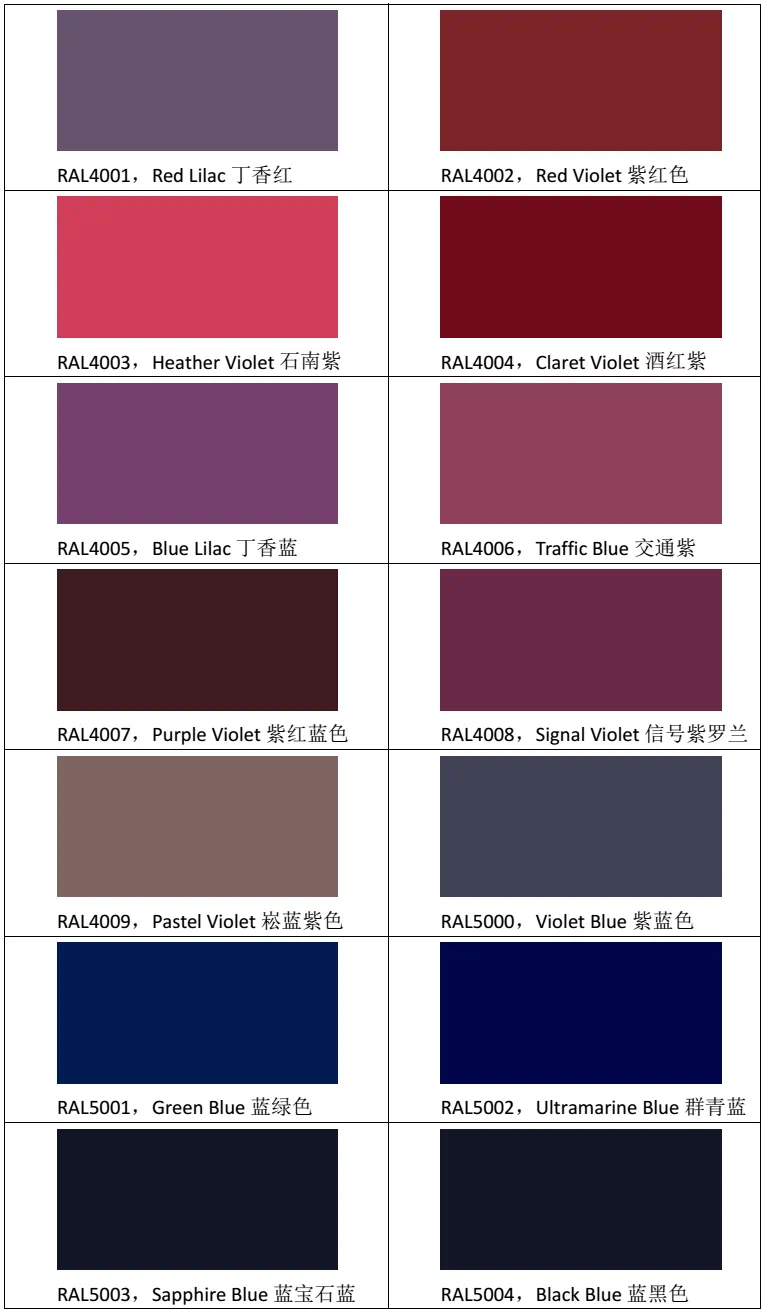

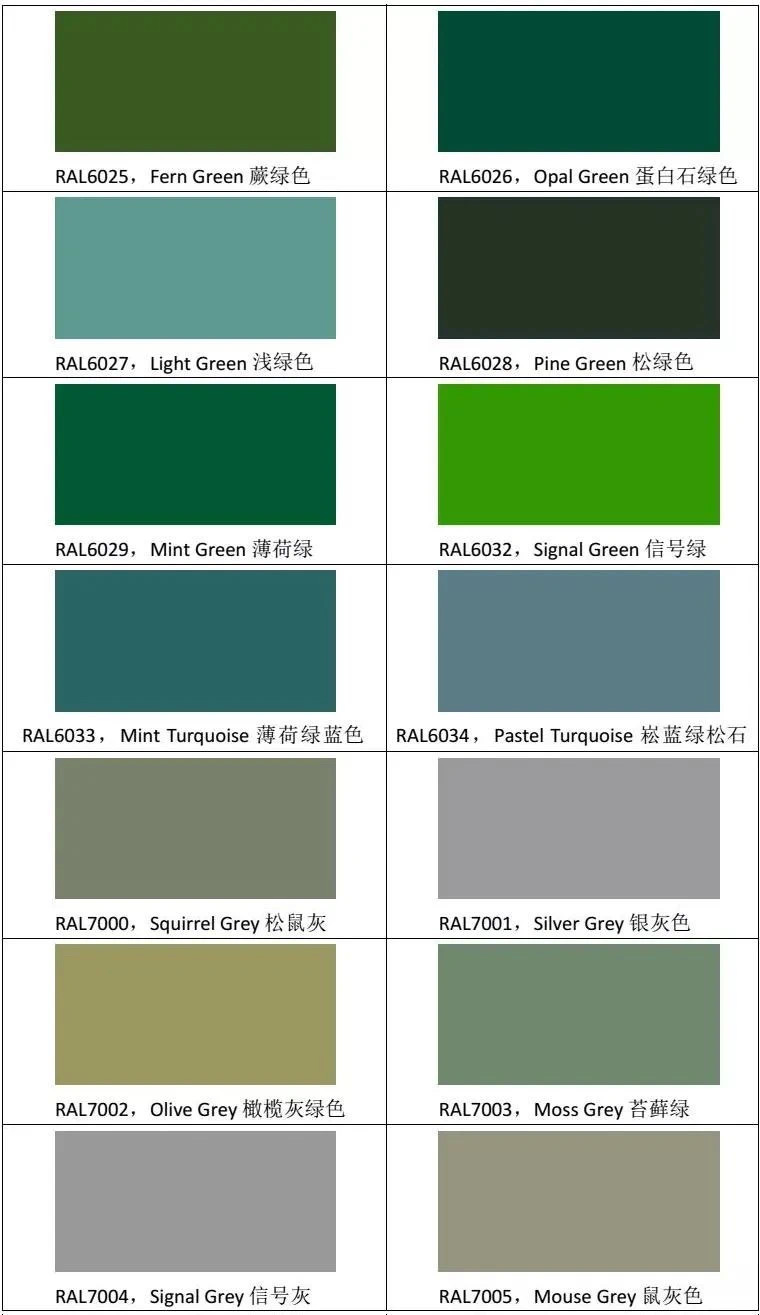

Colors |
All RAL colors are available |
|
Lacquer |
top side 15-25 micron Back side 5-10 micron |
|
Surface treatment |
Bright and clean, smooth and flat |
|
Coating structure |
2/1: Top+ Prime/Back, PE/EPOXY; 5+12-25 microns /5-8 microns |
|
Lifespan |
8-15 years, very strong corrosion resistance it wouldn't fade |
|
Tolerance |
Thickness:+/-0.02 mm, width:+/-2 mm; Total quantity:+/-5%; Zinc coating:+/-5% |
|
Tensile Strength |
>300mpa |
|
Yield Strength |
370-380mpa |
Package: Seaworthy, waterproof paper + polyethylene rush inhibitor, the anti-rust paper, the ring of defense on inside and outside, steel belt, and the guard plate.
